Distributed MariaDB Storage Autoscaling

This guide will give an overview on how KubeDB Autoscaler operator autoscales the database storage of a distributed MariaDB cluster using mariadbautoscaler crd.

Before You Begin

• You should be familiar with the following KubeDB concepts:
  • MariaDB
  • MariaDBAutoscaler
  • MariaDBOpsRequest
  • Distributed MariaDB Overview

How Storage Autoscaling Works

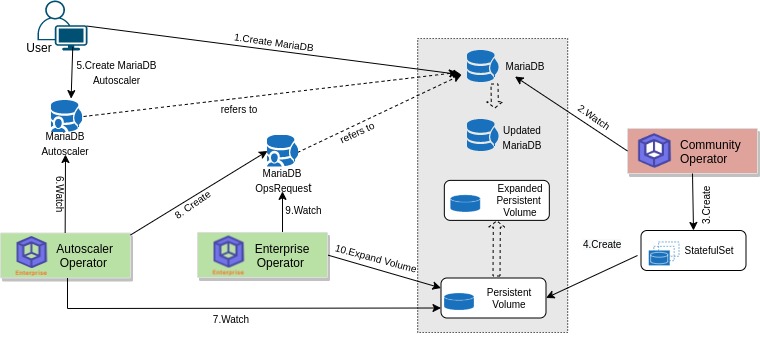

The following diagram shows how KubeDB Autoscaler operator autoscales the resources of MariaDB database components. Open the image in a new tab to see the enlarged version.

The Auto Scaling process consists of the following steps:

1. At first, the user creates a PlacementPolicy Custom Resource (CR) with monitoring.prometheus.url configured for each spoke cluster. This allows the autoscaler to monitor storage usage across all clusters where MariaDB pods are running.

2. The user creates a MariaDB Custom Resource (CR) with spec.distributed: true and a reference to the PlacementPolicy.

3. KubeDB Community operator watches the MariaDB CR.

4. When the operator finds a MariaDB CR, it creates required number of PetSets and distributes them across spoke clusters as defined by the PlacementPolicy.

5. Each PetSet creates a Persistent Volume according to the Volume Claim Template provided in the petset configuration. This Persistent Volume will be expanded by the KubeDB Enterprise operator.

6. Then, in order to set up storage autoscaling of the MariaDB database the user creates a MariaDBAutoscaler CRO with desired configuration.

7. KubeDB Autoscaler operator watches the MariaDBAutoscaler CRO.

8. KubeDB Autoscaler operator continuously watches persistent volumes of the databases across all spoke clusters to check if storage usage exceeds the specified threshold. It queries the Prometheus endpoints configured per cluster in the PlacementPolicy to collect storage metrics.

9. If the usage exceeds the specified usage threshold, then KubeDB Autoscaler operator creates a MariaDBOpsRequest to expand the storage of the database.

10. KubeDB Enterprise operator watches the MariaDBOpsRequest CRO.

11. Then the KubeDB Enterprise operator will expand the storage of the database component as specified on the MariaDBOpsRequest CRO.

Key Difference from Non-Distributed Autoscaling: For distributed MariaDB, the PlacementPolicy must include a monitoring.prometheus.url for each spoke cluster’s distributionRules entry. The autoscaler uses these Prometheus endpoints to collect storage usage metrics from pods running across multiple Kubernetes clusters.

In the next docs, we are going to show a step by step guide on Autoscaling storage of a Distributed MariaDB database using MariaDBAutoscaler CRD.
